1.Material: high quality, borosilicate 3.3 glass
2.Color: clear
3.Capacity: 100ml, 250ml, 500ml, 1000ml
4.Cap: Din thread GL45, pouring ring
5.Permanent white enamel graduations markings
Aijiren™ reagent bottles, also called media bottles, are manufactured from high quality, borosilicate 3.3 glass, with GL45 thread cap.
With their superior chemical resistance, these bottles are ideal for storage of reagents, culture media, biological fluids and a variety of other aqueous and non-aqueous solutions.
Clear bottles are ideal for displaying items, Sizes range from 100 ml up to 1000 ml and the larger ones may be used to store preserved biological specimens in the lab. The large ones also make excellent terrariums or miniature aquariums.
Reagent Bottle Details 1 |
|
Item name | Borosilicate Glass Round Reagent Bottle / Media Bottle |
Material | Borosilicate Glass 3.3 |
Cap Size | GL45 |
Cap | DIN thread GL45, pouring ring |
OEM/ODM Service | Available |
Brand | Aijiren |
Capacity | 100ML, 250ML, 500ML, 1000ML |

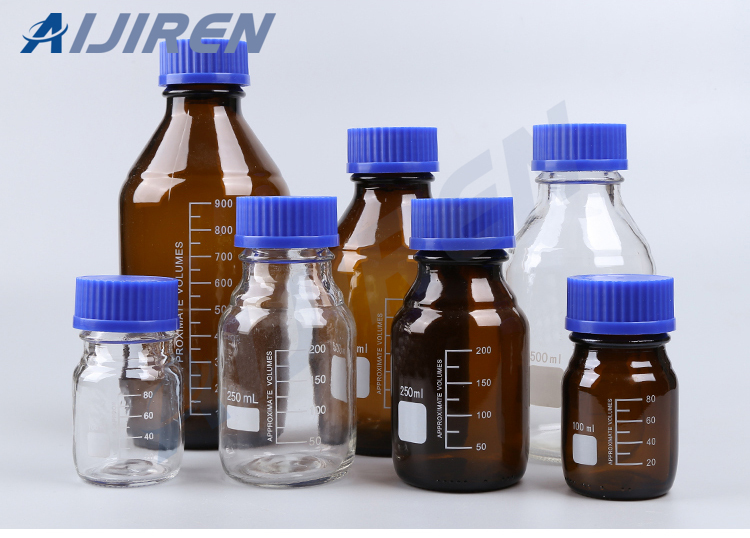

Color | Clear and amber |
Packing Details | 10pcs/pack, 8packs/carton, 22kg/carton; Packing in pp-trays with plastic film and carton |
Reagent Bottle Dimension and Details 2 |
|||||||
Capacity
(ML) |
Bottle Diameter
(mm) |
Bottle Mouth Inner Diameter
(mm) |
Bottle Mouth Diameter
(mm) |
Height
(mm) |
Cap | Material | Color |

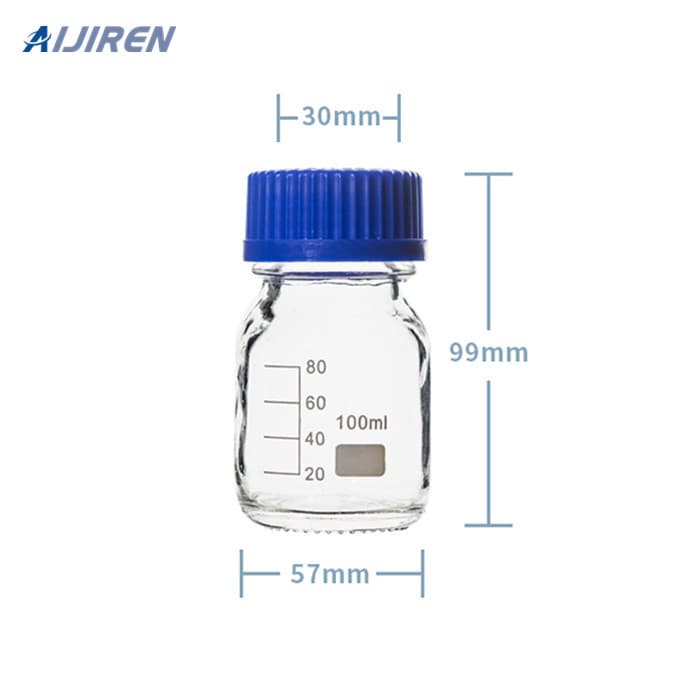

100 | 56 | 30 | 40 | 100 | GL45
|
Borosilicate Glass
|
Clear / Amber
|

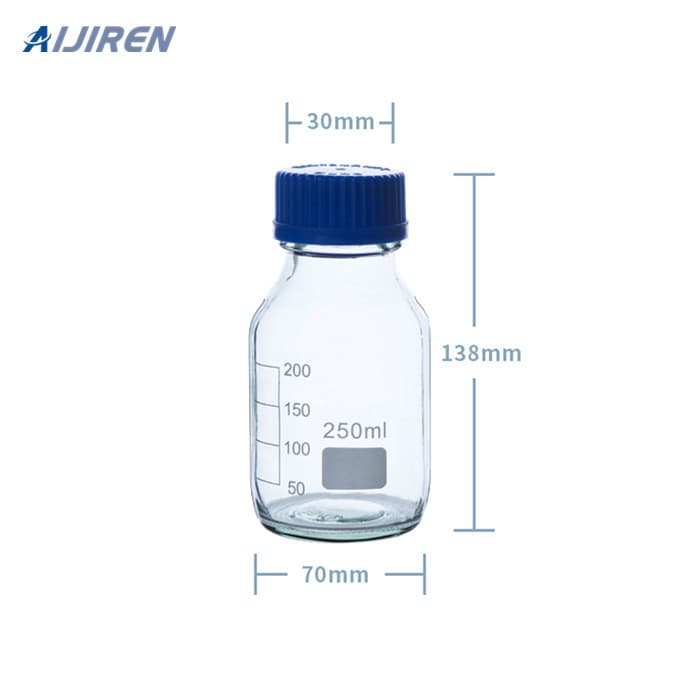

250 | 70 | 30 | 40 | 138 | |||

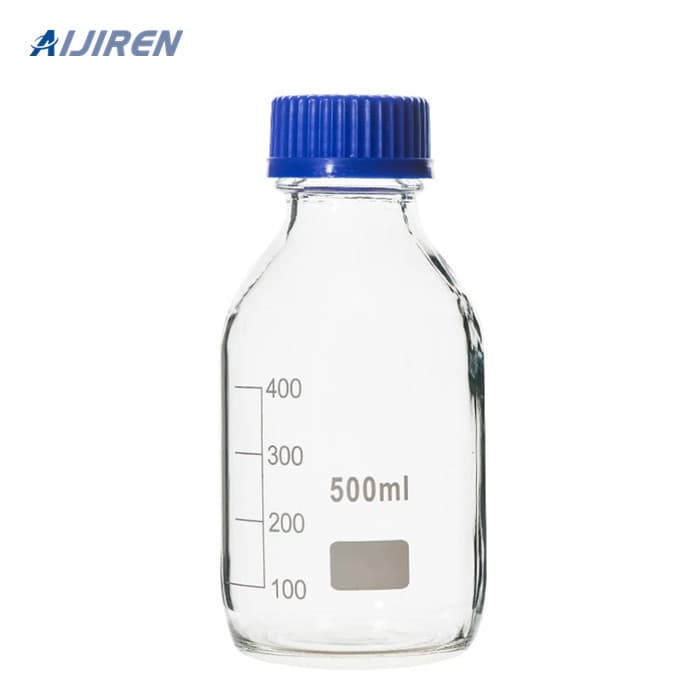

500 | 87 | 30 | 40 | 178 | |||

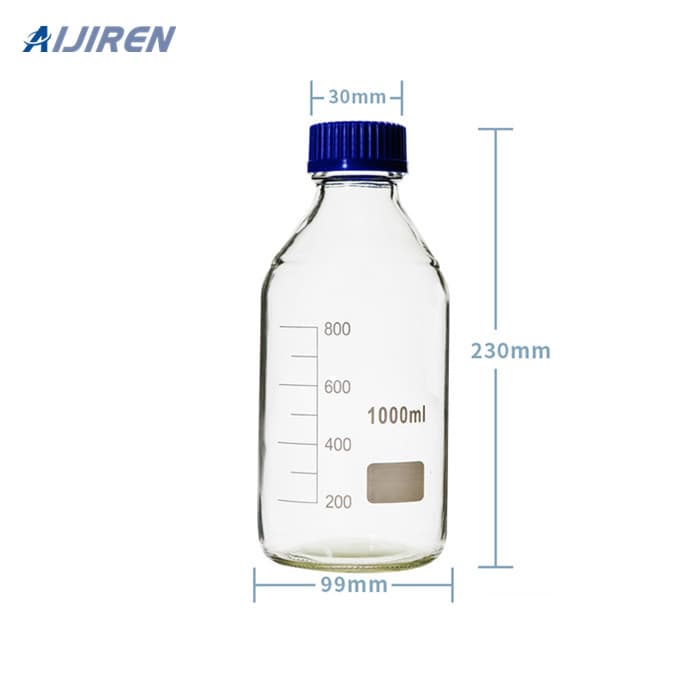

1000 | 99 | 30 | 40 | 230 |
Material Options for GL45 Reagent Bottles
Borosilicate Glass:
Borosilicate glass is a popular choice for GL45 reagent bottles due to its excellent chemical resistance and thermal stability. It can withstand a wide range of chemicals, including acids, bases, and organic solvents, without degradation or leaching. Borosilicate glass is also highly transparent, allowing for easy visual inspection of the contents. It is known for its durability and resistance to thermal shock, making it suitable for applications that involve temperature variations, such as autoclaving or hot water baths. Furthermore, borosilicate glass is recyclable and environmentally friendly. Borosilicate glass 3.3 is an attractive material that offers inexhaustible design possibilities. Very high chemical resistance, virtually inert behaviour, transparency, high usage temperature, minimal thermal expansion, and the resulting high resistance to thermal shock, are its most significant properties.
Borosilicate Glass 3.3 Feature |
|
SiO2 Content | >80% |
Strain Point | 520℃ |
Annealing Point | 560℃ |
Softening Point | 820℃ |
Refractive Index | 1.47 |
Light Transmission(2mm) | 0.92 |
Elastic Modulus | 67KNmm-2 |
Tensile Strength | 40-120Nmm-2 |
Glass Stress Optical Coefficient | 3.8*10-6mm2/N |
Processing Temperature(104dpas) | 1220℃ |
Linear Coefficient of Expansion(20-300℃) | 3.3*10-6K-1 |
Density(20℃) | 2.23gcm-1 |
Specific Heat | 0.9jg-1K-1 |
Thermal Conductivity | 1.2Wm-1K-1 |
Hydrolytic Resistance(ISO 719) | Grade 1 |
Acid Resistance(ISO 715) | Grade 1 |
Alkali Resistance(ISO 695) | Grade 2 |
Thermal Shock Resistance(ISO 715) Rod 6*30mm | 300℃ |

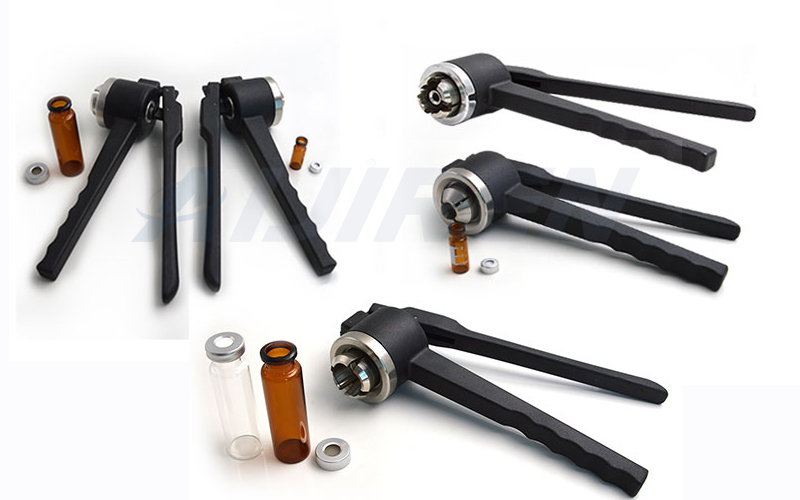

Precisely crimp and decrimp vials with our versatile 11mm and 20mm hand tools. Essential for medical, lab, and pharmaceutical packaging. Reliable tools, fast shipping.
1.Material: high quality, borosilicate 3.3 glass
2.Color: clear
3.Capacity: 100ml, 250ml, 500ml, 1000ml
4.Cap: Din thread GL45, pouring ring
5.Permanent white enamel graduations markings

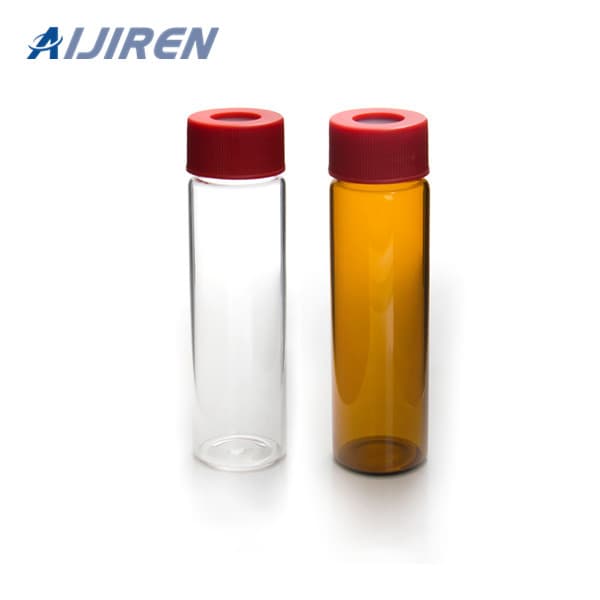

Total volume: 40mL
